Water Filler Funnel (Various)
My Funnel designs were inspired by watching people struggle with a
big funnel with a flexible pipe in one hand, and a collapsible bucket of
water in the other. Pouring water all up their arms not into the hole. I
thought there must be a better way. This is my 3D printed solution. The
number of designs is slowly growing as new models of motor home fillers
appear.

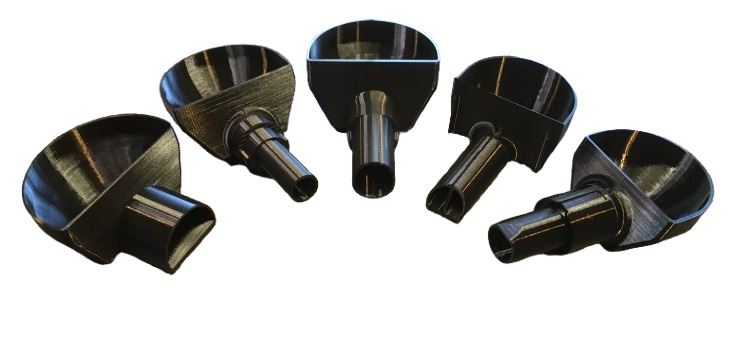

Funnel versions made so far are listed below.
If you have one not shown. Let me know and i will try and make it for
you. These are funnels and not the water filler openings on your van.
The images of the filler openings are just to help you work out which
one you have.
Some funnels, such as the FAWO have slightly different hole sizes. If
so, you will need to measure the hole. This is best done by cutting a
strip of cardboard to 34mm wide initially and seeing if it will slide in
comfortably. If toooo wide, reduce it by 1mm at a time until it slides
in. This will be your pipe diameter. Test picture at bottom.
1 Whale Fillers with Slide Up Doors £12
2 Fiamma Fillers (Murvi Vans) Straight and Wonky
£12
3 Swift etc FAWO. 33mm or 34mm £12
4 Traditional Style PLS ES2100 33mm £12
5 FAP Round Fillers with Top Hinge Doors 28 and 34mm
Hole £16
6 German Behind Locker Door Fillers £16
7 VW California/Ocean Filler V1(FAWO 33mm) + V2
£12
8 Seaflo Water Fillers with side hinge doors £13
9 Thetford Toilet Flush Filler £12
10 ScreenWash Funnel for Ducato. (Not A Class) £12
Please add P&P £3.75 to any orders
Email us on chrisatheathpark@yahoo.com to order.
< Return to full product catalogue.
Whale Funnel (image above)
.
.
.
.
Whale Funnel Baffle. This comes with every Whale Funnel to resolve the issue of poor tank venting and restricted pipework which creates water back pressure when filling. It can be sealed with a little silicone to improve the baffles effectiveness even further. (image above)
.
.
.
.
Fiamma Funnel.
This filler is normally fitted straight so the word fiamma is at the bottom. In some instances as shown in this picture it is fitted wonky. Let me know if yours is wonky as I make one to accommodate the wonkyness. (image above)
.
.
.
.
Swift etc FAWO Funnel, Fits all vans with FAWO filler. (image above)
.
.
.
.
Traditional Zadi PLS
ES2100/2150 (image above)
.
.
.
.
FAP 28mm and 34mm Tube Diameter. (image above)
.
.
.
.
German Behind the Locker Door. (image above)
.
.
.
.
VW T6.1 California and Ocean V1(FAWO) and V2
Made in two pieces for smaller storage. (Pipe/Cup)
Can be glued together with silicone sealer if desired. (image above)
.
.
.
.
Seaflo Filler. (image above)
.
.
.
.
Thetford WC Flush Funnel Open. (image above)
Thetford WC Flush Funnel Closed. (image above)
.
.
.
.

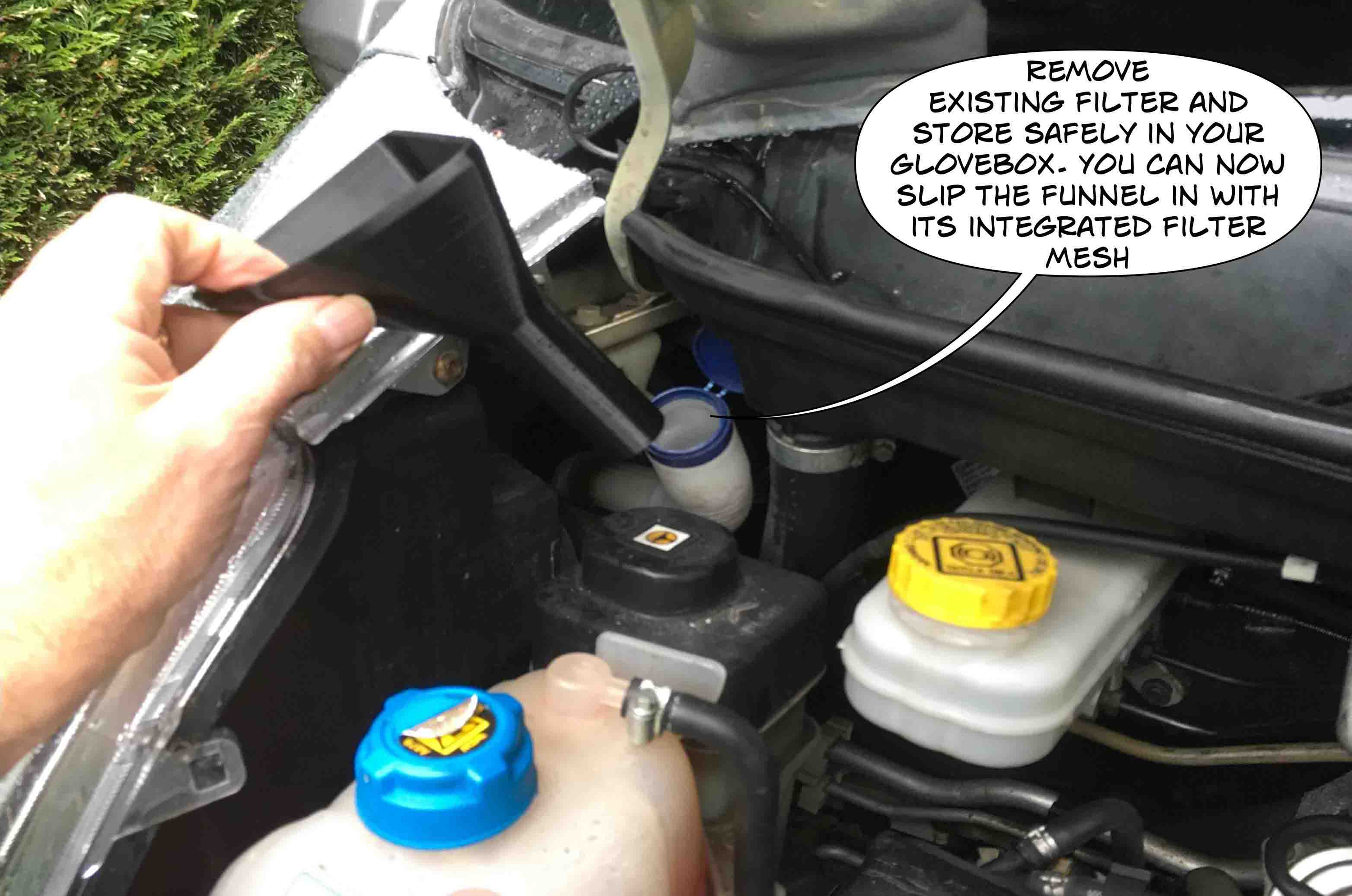

ScreenWash Funnel for Fiat Ducato and all there derivatives. Comes with integral filter mesh printed into the tube to keep debris out. Remove the existing blue filter and store in your door pocket in case you need it later. (image above)
.
.
.
Test Picture, Showing measuring your filler hole with cardboard strip. Start at 34mm and then reduce till it fits snug. (image above)
